Build a Complete Step with these Step Frames

You can build a complete set of steps with these "STEP FRAMES". They are available in three types as shown below. Each type is available in 2 to 9 risers. These frames are manufactured with 2 x 2 x 3/16 angle iron and 2 x 3/16 flat iron and are predrilled to accommodate 2 x 6 or 2 x 12 planks.
Click Here for More Information and Prices
Conventional Step
Click Here for More Information and Prices
Side Step
Click Here for More Information and Prices
Crossover Step

(click on the pictures above for details and prices)



Conventional Step Frames

(go to top of page)
Artistic Steps are easy to install... simply bolt step frames to the floor joist, (3 ft. apart). Bolt front of step to the sidewalk, piles or blocks. Bolt planks to the step frames, 4 on the landing and 1 for each tread. Now bolt the railings to the planks to complete your step. A coat of paint should now be applied.

Landing: 45" deep by 60" or 72" wide (width depends on plank length)
Treads: 11" wide by 60" or 72" long
Risers: 7.5" high
Paint: Black primer coat

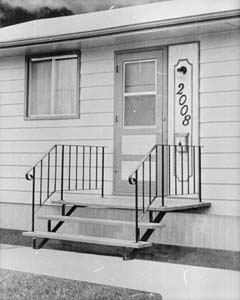

3 Riser Step with Railings


Step
Size

Total
Height
Step Frames
36" High Railings
Stock
Number
*Price
Pair
Stock
Number
*Price
Each
2 Riser
15"
2S
$170.50
2R48-36
$179.30
3 Riser
22.5"
3S
$210.10
3R48-36
$209.00
4 Riser
30"
4S
$255.20
4R48-36
$234.30
5 Riser
37.5"
5S
$295.90
5R48-36
$259.60
6 Riser
45"
6S
$339.90
6R48-36
$301.40
7 Riser
52.5"
7S
$432.30
7R48-36
$343.20
8 Riser
60"
8S
$484.00
8R48-36
$377.30
9 Riser
67.5"
9S
$537.90
9R48-36
$422.40
Need Help??? CLICK HERE For Our Help/Order Desk.
*Prices are suggested retail. Planks, freight & taxes extra.

Step frames are drilled for 2 x 12 or 2 x 6 planks. Hardware supplied with frames.
Building Code may require 36" high railings (Please Check)




Side Step Frames

(go to top of page)
Artistic Steps are easy to install... simply bolt one step frame to the floor joist. Bolt other frame to the sidewalk, piles or blocks. Set frames 3 ft. apart. Now bolt planks to the step frames, 5 on the landing and 1 for each tread (planks must be cut 48" long). Now bolt the railings to the planks to complete your step. A coat of paint should now be applied.

Landing: 48" by 56" (56" runs along the wall)
Treads: 11" wide by 48" long
Risers: 7.5" high
Paint: Black primer coat

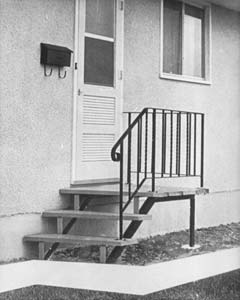

3 Riser Side Step with Railing
(side steps can hang right or left)


Step
Size

Total
Height
Step Frames
36" High Railings
Stock
Number
*Price
Pair
Stock
Number
*Price
Each
2 Riser
15"
2SS
$202.40
2RS65-36
$327.80
3 Riser
22.5"
3SS
$250.80
3RS65-36
$354.20
4 Riser
30"
4SS
$295.90
4RS65-36
$388.30
5 Riser
37.5"
5SS
$343.20
5RS65-36
$411.40
6 Riser
45"
6SS
$388.30
6RS65-36
$460.90
7 Riser
52.5"
7SS
$471.90
7RS65-36
$500.50
8 Riser
60"
8SS
$557.70
8RS65-36
$540.10
9 Riser
67.5"
9SS
$639.10
9RS65-36
$590.70
Need Help??? CLICK HERE For Our Help/Order Desk.

*Prices are suggested retail. Planks, freight & taxes extra.

Step frames are drilled for 2 x 12 or 2 x 6 planks. Hardware supplied with frames.
Building Code may require 36" high railings (Please Check)




Crossover Step Frames

(go to top of page)
Artistic Steps are easy to install... simply bolt one step frame to the floor joist, bolt other frame to the sidewalk, piles or blocks. Set frames 3 ft. apart. Bolt planks to the step frames, 5 on the landing and 1 for each tread (Cut planks 48" long). Now bolt the railing to the planks to complete your step. A coat of paint should now be applied.

Landing: 48" by 56" (56" runs along the wall)
Treads: 11" wide by 48" long
Risers: 7.5" high
Paint: Black primer coat

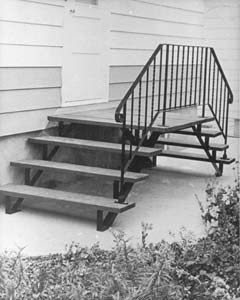

4 Riser Crossover Step


Step
Size

Total
Height
Step Frames
36" High Railings
Stock
Number
*Price
Pair
Stock
Number
*Price
Each
2 Riser
15"
2SC
$275.00
2RC60-36
$280.50
3 Riser
22.5"
3SC
$345.40
3RC60-36
$336.60
4 Riser
30"
4SC
$431.20
4RC60-36
$426.80
5 Riser
37.5"
5SC
$518.10
5RC60-36
$479.60
6 Riser
45"
6SC
$600.60
6RC60-36
$554.40
7 Riser
52.5"
7SC
$683.10
7RC60-36
$636.90
8 Riser
60"
8SC
$764.50
8RC60-36
$722.70
9 Riser
67.5"
9SC
$847.00
9RC60-36
$776.60
Need Help??? CLICK HERE For Our Help/Order Desk.

*Prices are suggested retail. Planks, freight & taxes extra.

Step frames are drilled for 2 x 12 or 2 x 6 planks. Hardware supplied with frames.
