Height of Rail
     - 36 inches or 42 inches high railings. Check your local building code to see which height you require.

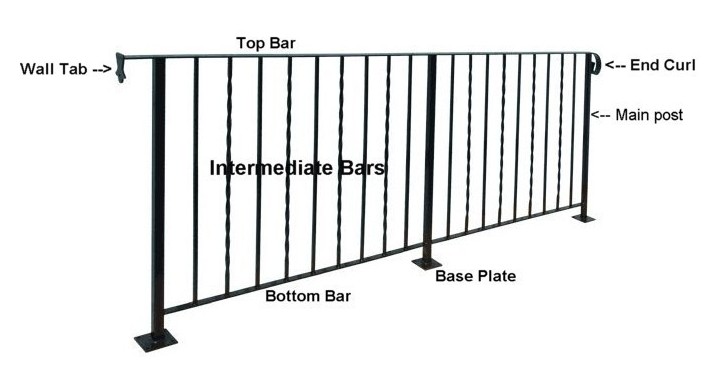

Posts
     - 1 ¼" x 1 ¼" x 100 wall square tubing with a welded on base plate.

Top Bar
     - 1 ½" x ¼" flat iron is used for the top bar.

Bottom Bar
     - 1 ¼" x ¼" flat iron is used for the bottom bar.

Base Plate
     - 4" x 4" x ¼" square plates with four 3/8" holes.

Intermediate Bars
     - ½" x ½" solid square bars, Straight and Twisted. Welded in with a 4" max. opening between them.
Spaces
     - There is a 4" space from the floor to the bottom bar and a 4" space between the intermediate bars.

End Curl
     - You have two types of end curl to choose from.

Wall Tab
     - The slip on wall tab slides on and off the tail of the railing, allowing you to trim the end if the railing is to long.

PAINT
     - Because of the scratches and bruises the railing will receive in transit and installation, we only prime the railing with a black primer coat. You need only apply enamel paint of your colour choice for years of beauty.
